Benefits
The 1700 Series Maxiflow valves provide reliable boiler overpressure protection with fast lift and tight shutoff to reduce steam loss and improve efficiency.

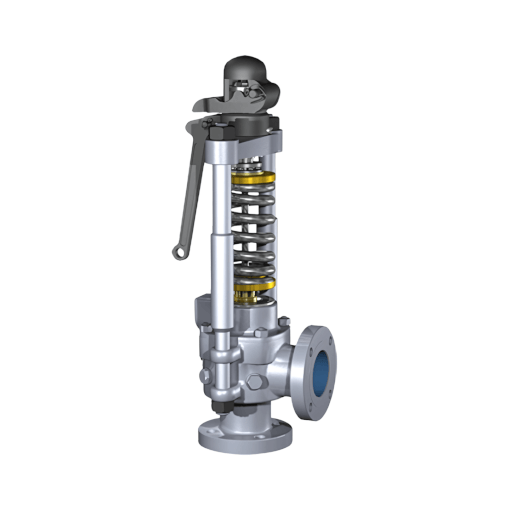

Type 1700
Maxiflow™ Safety Valve
Features
Side rod construction compensates for thermal expansion, ensuring consistent spring load and improved seat tightness. The thin, flexible thermodisc design allows repeatable tight shutoff. Rapid venting via the cover plate enables faster full lift.
Applications
The Consolidated 1700 series Maxiflow safety valves are used extensively in sub-critical, drum type boilers and super-critical, once-through boilers. Inlet pressure ratings from ASME 600 class thru ASME 4500 class.
Technical Specifications
Inlet Sizes1 1/2" through 6" |
Inlet RatingsANSI Class 600 through 4500 |
Outlet Sizes3" through 10" flanged |
Outlet RatingsANSI Class 150 and 300 |
Orifice SizesEleven sizes – 1 through RR |
Set Pressure Range100 psig to 5800 psig |
Temperature RangeUp to 1200°F
|
MaterialsAlloy and carbon steel cast body with stainless steel trim
|
Standards and RegulationsASME B & PVC, Section 1 & VIII |
Downloads
Consolidated has made various downloads available for the Consolidated type 1700, including the specification sheet and the information sheet. These can be downloaded via the Consolidated website.
