Benefits
The Consolidated 1811 series safety valves are designed to be cost-effective and high capacity.

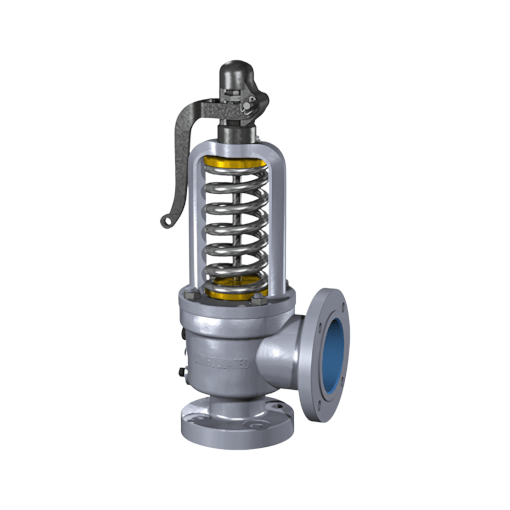

Type 1811
Safety Valve
Features
Optimized seat design for improved seat tightness and higher
capacity.
Applications
The Consolidated 1811 series safety valves are designed with inlet pressure ratings from ASME 300 class thru ASME 600 class. The design is approved for use by the US. Coast Guard for power boilers and other marine applications.
Technical Specifications
Inlet Sizes1 1/4" through 6" |
Inlet RatingsANSI Class 300 and 600 |
Outlet Sizes1 1/2" through 8" |
Outlet RatingsANSI Class 150 |
Orifice SizesTen sizes – F through Q |
Set Pressure Range15 psig to 725 psig |
Temperature RangeUp to 1000°F
|
MaterialsAlloy and carbon steel cast body with stainless steel trim
|
Standards and RegulationsASME B & PVC, Section 1 & VIII |
Downloads
Consolidated has made various downloads available for the Consolidated type 1811, including the specification sheet and the information sheet. These can be downloaded via the Consolidated website.
