Superior Sealing Performance
• Precision machining and manufacturing to accomplish superior sealing
• Ultra-tight sealing reduces product leakage and fugitive emissions
• Leak Rate is compliant with API 2000

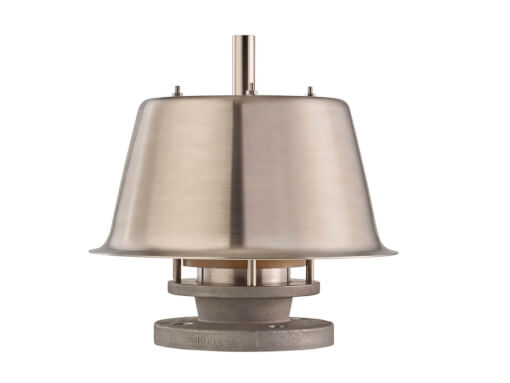

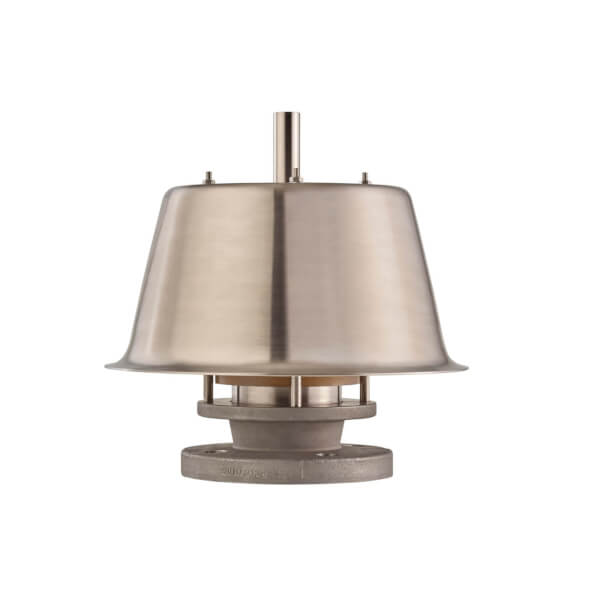

MODEL 23E-TW0
Weight Loaded Pressure Relief Valve
Groth Corporation Model 23E-TW0-0 weight loaded pressure relief valve is designed
to be used in applications where additional pressure relief is necessary. Pressure relief
valves provide relief from excessive internal pressure which may cause tank damage.
Industry Leading Flow Rates
• Higher flow capacity to protect from excessive pressure build up
• Higher flow rates also allow these valves to be used in a wider range of applications
than valves with lower flow rates
Direct Replacement & Easy Maintenance
• Direct replacement for any standard pressure relief valve
• Designed for easy maintenance, thus reducing downtime and lowering operational costs
• Fully field replaceable pallet assemblies
• Replacement pressure diaphragms “soft goods”
Technische Specificaties
Size2” (50mm) through 12” (300mm) |
Casting MaterialAluminum (non-sparking), Carbon Steel, Stainless Steel |
Pallet MaterialAluminum (low settings only), Stainless Steel |
Diaphragm MaterialsBuna-N, Blue FKM or FEP |
Weight MaterialStainless Steel and Zinc coated Carbon Steel |
Bolting Class150# ASME, PN10, PN16, JIS drilling classes available |
Pressure Settings.86 inWC (2.15 mbarg) to 41.5 inWC (103 mbarg) |
Leak Rate is compliant with API |
PED and ATEX Certified |
Downloads
GROTH heeft diverse downloads beschikbaar gesteld over de GROTH MODEL 23E-TW0. Deze zijn te downloaden via de website van GROTH.
Gerelateerde producten

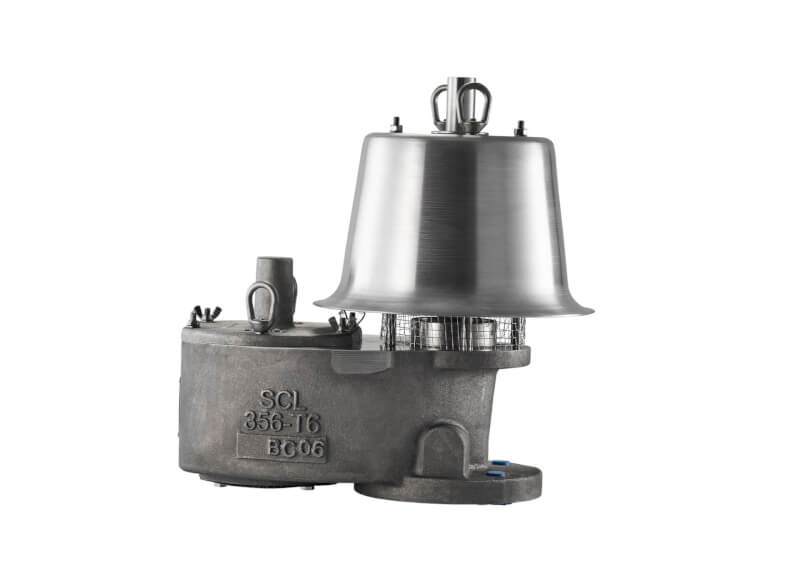

MODEL 12E-TWW-0

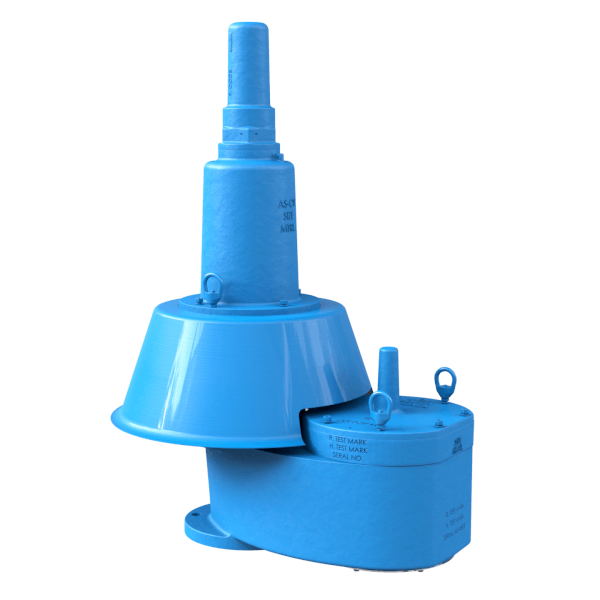

MODEL 12E-TSW
