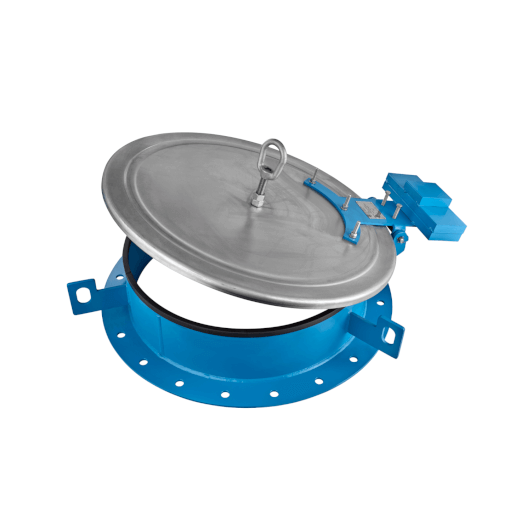

MODEL 2400A
Emergency Pressure Relief Valve, Weight-Loaded; Hinged
The Groth 2400A Emergency Pressure Relief Valve adds emergency relief capacity beyond a tank’s standard relief valve. It protects against rupture from fire or other overpressure events. The self-closing, hinged valve features a fluoropolymer "cushioned-air" pallet and guided seating for reliable alignment. It’s available entirely in corrosion-resistant materials.
A wide stainless steel seat and air-cushion seal keeps leakage low long after the valve is put in service
A hinged design including a lift stop ensuring positive re-seating for reliable performance
Easy access manway combined with emergency relief
Technical Specifications
Sizes16” – 24” (DN 400 – 600) |
Pressure Setting2.60 – 13.9 inWC (6.46 mbarg to 34.5 mbarg) |
Vacuum Settings0.87 – 6.93 inWC (2.15 mbarg to 17.2 mbarg) |
MaterialsCarbon Steel, Stainless Steel, special materials upon request |
Certified to the ATEX 2014/34/EU Directive |
Downloads
GROTH has made various downloads available for the GROTH MODEL 2400A, including the specification sheet and the information sheet. These can be downloaded via the GROTH website.
