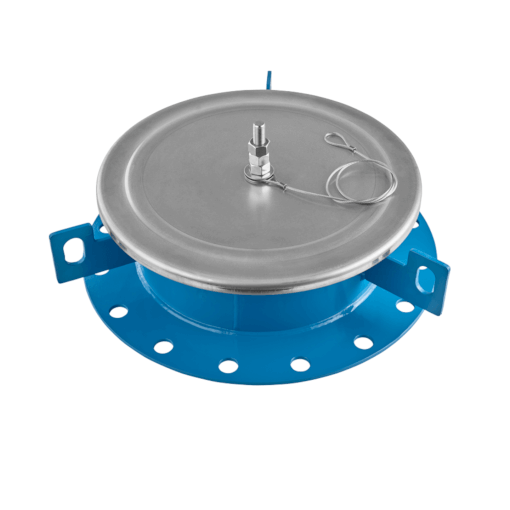

MODEL 2000A
Emergency Pressure Relief Valve, Weight-Loaded
The Groth Model 2000A is designed to provide emergency relief capacity beyond that furnished by the normal operating pressure relief valve on the tank. The valve protects the tank against rupture or explosion that could result from excessive internal pressures caused by fire. Removable stops can be provided which restrict the lift of the cover.
Grounding Cable connects the head and flange
Cushioned Air pallet
Peripheral Guiding
Technical Specifications
Size16″ (DN 400) , 20″ (DN 500) and 24″ (DN 600) |
MaterialAvailable in carbon steel, stainless steel, fiberglass and other materials |
Pressure2.60 – 27.7 inWC (6.46 – 68.9 mbarg)
|
CertificationATEX Approval |
Manufactured in an ISO 9001 Certified Manufacturing Facility |
Downloads
GROTH has made various downloads available for the GROTH MODEL 2000A, including the specification sheet and the information sheet. These can be downloaded via the GROTH website.
