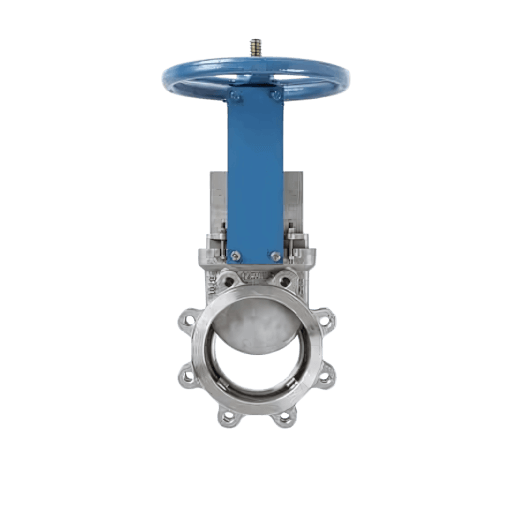

DeZURIK KGN-RSB & KGN-MSU

Cast Stainless Steel Knife Gate Valves

DeZURIK KGN Knife Gate Valves are available as bi-directional resilient seated or unidirectional metal seated designs. Both types feature stainless steel bodies, gates, stems, and packing glands for corrosive and abrasive applications. The KGN-RSB offers bubble-tight shutoff; KGN-MSU is suited for slurry and dry materials.

Technical Specifications

Size range:


Resilient Seated (RSB): 2-24” (50-600mm)
Metal Seated (MSU): 2-36″ (50-900mm)

Pressure Rating:


2-24″ (50-­600mm) – 150 psi C.W.P. (1030 kPa)
30-36″ (750-900mm) – 100 psi (690 kPa)




Downloads

DeZURIK has made various downloads available for the DeZURIK KGN, including manuals. These can be downloaded via the DeZURIK website.

View available downloads
