DeZURIK KUL

Urethane Lined Knife Gate Valves

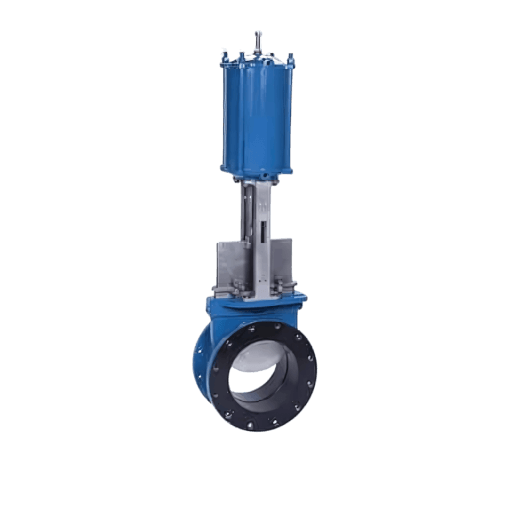

DeZURIK’s KUL Urethane Lined Knife Gate Valves are designed for on-off service in abrasive slurry and dry materials. A bonded urethane liner provides bi-directional, drip-tight shutoff and full-pressure dead-end service. The enclosed design prevents discharge to atmosphere, enhancing performance in harsh applications.

Technical Specifications

Size Range:

2-48″ (50-1200mm) Standard Flanged End Connections & Extended Flanged – Long Pattern
2-8″ (50-200mm) Extended Flanged End Connections – Short Pattern
2-12″ (50-300mm) Grooved End Connections

Temperature Range:


-20 to 265°F (-29 to 130°C) with additional seat materials available on application

Pressure Rating:


150 or 250 psi (1030 or 1720 kPa) CWP

Body Material:

Cast ductile iron with gates of 304, 316, 317, 254 stainless steel or Hastelloy C

Downloads

DeZURIK has made various downloads available for the DeZURIK KUL, including manuals. These can be downloaded via the DeZURIK website.

View available downloads
