Versatile
Masoneilan 21000 Series heavy top-guided globe valve supports many automated control applications with diverse trim, actuation, and instrumentation options.

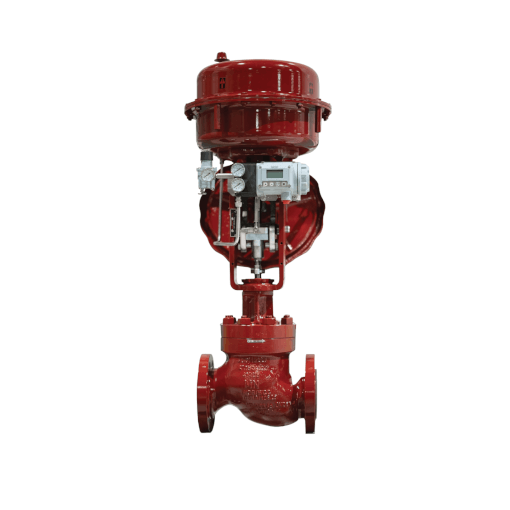

Masoneilan 21000 Series
Single Port Valve
Baker Hughes offers the Masoneilan 21000 Series heavy top-guided globe valve for a wide range of automated process control applications. The 21000 Series product line features a single-ported design configuration, which permits numerous trim, actuation, and instrumentation solutions including:
Reliable
Rugged top-guiding ensures maximum valve stability under harsh conditions, proven in thousands of process plants worldwide.
High Performance
Combines versatile trim designs, stable actuators, tight shutoff, and precise positioning for optimum control across materials and pressure ratings.
Technical Specifications
Sizes3/4” through 8” (20 through 200 mm) |
Ratings & ConnectionsFlanged: ANSI 150 – 2500, UNI-DIN 10 - 400 Welded: BW or SW Screwed: NPT 3/4” through 2” (20 through 50 mm) |
Body Materialscarbon steel; stainless steel; chrome-moly |
Actuatorsmodel 87/88 multi-spring diaphragm; cylinder |
Trimsingle seat plug top guided; Lo-dB and anti-cavitation trims, single or double stage are available |
Inherent CharacteristicsLinear or equal percentage |
Downloads
Masoneilan has made various downloads available for the Masoneilan 21000 Series, including the specification sheet and the information sheet. These can be downloaded via the Masoneilan website.
