Available from stock ✔

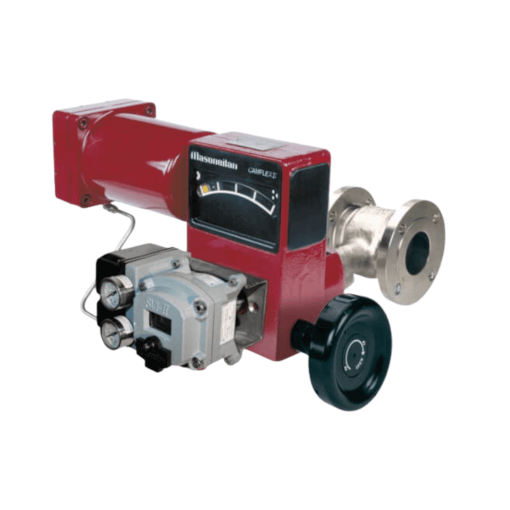

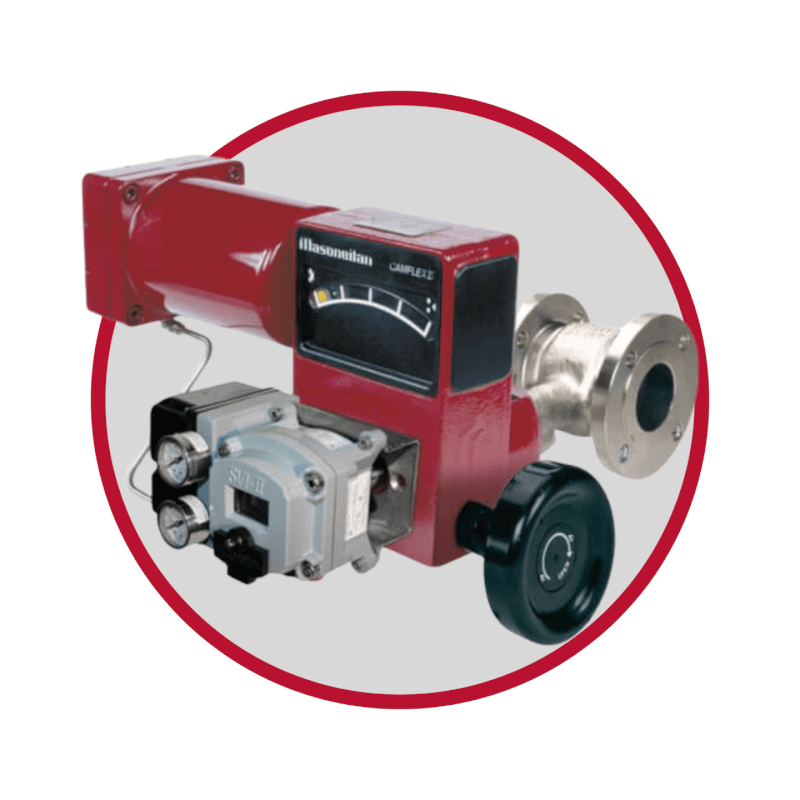

Plug flexing

The trailing edge of the plug face contacts the seat ring first when closing, causing the plug arms to flex for tight, long-term seating.

Wide application range

The standard version includes features that are optional or unavailable in other valves.

Integral extension bonnet

Integrally cast extension bonnet enables full-range use of low-friction TFE packing from -196˚C to 400˚C, with optional graphite packing for fire-safe applications.

Standard low-emissions packing

Camflex eliminates emissions from the bonnet joint and uses EF Seal packing meeting FCI 91-1 (EPA) and ISO 15848-1 Class A requirements.

Designed to resist erosion

Standard hardfaced or solid Stellite plug with optional seat rings prevents damage from erosive services.

Smaller, lighter, easy to handle

Camflex II is smaller, lighter, easier to install, with flexible body options and flange dimensions matching standard globe valves.

Minimized parts

The design eliminates bonnet gasket and requires one plug per valve size, minimizing inventory and simplifying maintenance.

Low-noise trim option

Optional patented differential velocity device reduces noise by up to 18 dBA by separating flow streams.
