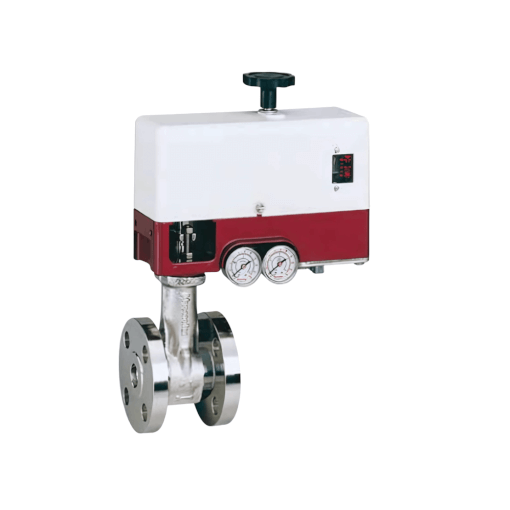

Masoneilan 28000 Series
Varipak™ Valve
Designed specifically for low flow applications, the Masoneilan Varipak Control Valves provides excellent throttling control performance with a wide range of options and capabilities. Design optimization has also resulted in an extremely integrated and compact assembly.
Application Flexibility
Adjustable CV
Compact Assembly
Anti-Cavitation Trim
Design flexibility
Technical Specifications
Sizes1” (25 mm) standard 1/2” through 3/4” (15 through 20 mm) available on request |
Ratings & ConnectionsFlanged: ANSI 150 - 1500 Flangeless for mounting between flanges: ANSI 150 – 2500, UNI-DIN 10 - 400 Screwed: NPT 1/2” through 1” (15 through 25 mm) |
Body Materialsstainless steel; monel; hastelloy C; alloy 20 |
Actuatorsintegral spring diaphragm |
Trimfull stellite needle plug; multistep anti-cavitation trim available |
Inherent CharacteristicsLinear |
Downloads
Masoneilan has made various downloads available for the Masoneilan 28000 Series, including the specification sheet and the information sheet. These can be downloaded via the Masoneilan website.
