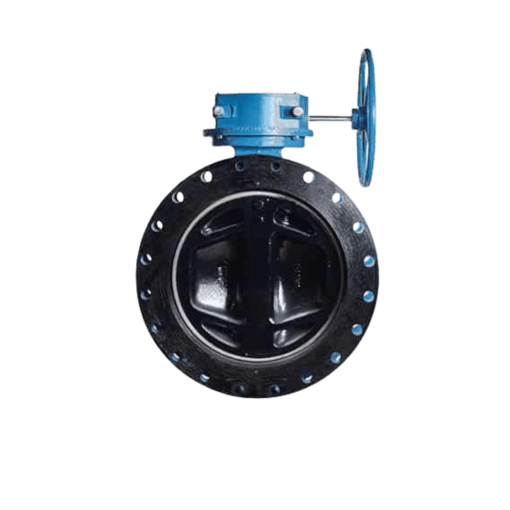

DeZURIK AWWA Butterfly Valves

DeZURIK AWWA Butterfly Valves meet AWWA C504 and C516 standards for shutoff in clean water and gas applications. All sizes feature corrosion-resistant components and self-compensating seals for reliable sealing. Smaller valves use molded-in seats, while larger sizes include adjustable seats and non-hollow discs for extended service life.

Technical Specifications

Size Range:

3-168″ (80-4300mm)

Temperature Range:

to 290°F (143°C)

AWWA Class:

75B, 150B, 250B

Pressure Rating:

75 psi (520 kPa); 150 psi (1030 kPa); 250 psi (1700 kPa)

Body Material:

Cast iron, ductile iron, carbon steel, stainless steel

End Connections:

Flanged, Mechanical Joint

Actuator Type:

Lever, handwheel, chainwheel, square nut, cylinder, electric motor

Special Construction:

Specially designed packages for Pump Check control applications are also available.

Downloads

DeZURIK has made various downloads available for the DeZURIK AWWA Butterfly Valves, including manuals. These can be downloaded via the DeZURIK website.

View available downloads
