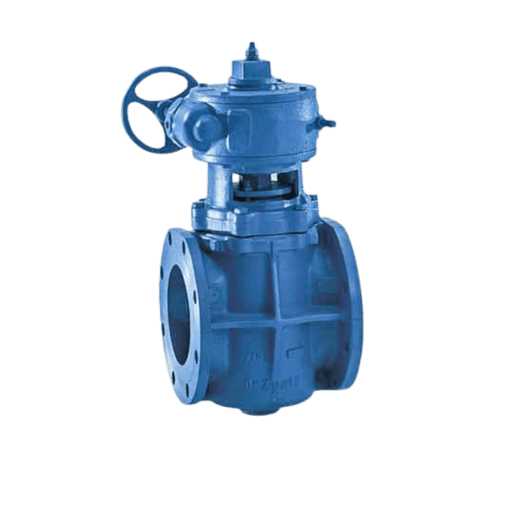

DeZURIK Eccentric Plug Valves

(PEC, PEF)

DeZURIK Eccentric Plug Valves handle liquids, sludge, slurries, and gases for shutoff or control service. The eccentric plug action with resilient facings ensures lasting, bubble-tight shutoff without seat wear. Features include corrosion-resistant bearings, nickel seat, and multiple port area options to match flow requirements.

Technical Specifications

SIZE RANGE

.5 – 72″ (15 – 1800mm)

TEMPERATURE RANGE

450°F (232°C)

SHUTOFF CLASS

Resilient plug facing: drip tight
Metal plug: equal to ANSI/FCI 70-2 Class IV

BODY MATERIAL

Cast iron, ductile iron, bronze, aluminum, carbon steel, stainless steel, Alloy 20, and Monel

PRESSURE RATING

PEC Eccentric Plug Valves:

Cast Iron: .5-12” = 175 psi (15-300mm = 1210 kPa); 14-72” = 150 psi (350-1800mm = 1035 kPa)
Ductile Iron:.5-12” = 285 psi (15-300mm = 1965 kPa); 14-72” = 250 psi (350-1800mm = 1724 kPa)
Special: 450 psi (3100 kPa)

PEF Eccentric Plug Valves:

Cast Iron or Ductile Iron: 3-12” = 175 psi (80-300mm = 1210 kPa); 14-36” = 150 psi (350-1800mm = 1035 kPa)

SUGGESTED SPECIFICATIONS
