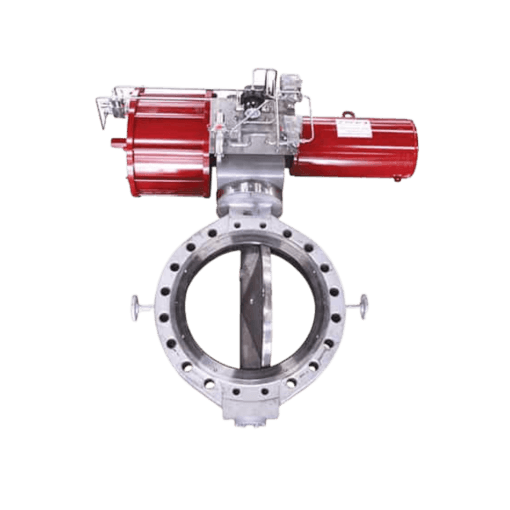

DeZURIK Tail Gas High Performance Butterfly Valve

(BTG)

The DeZURIK BTG Tail Gas Butterfly Valve is designed for demanding services where media may solidify or polymerize. It’s used in tail gas, polymer processing, and adhesive manufacturing. The valve includes steam jacketing and internal ports to maintain temperature and protect critical components. These features ensure reliable operation and tight shutoff.

Technical Specifications

Size Range:

3-48″ (80-1200mm)

Temperature Range:

to 700°F (370°C). On application to 1000°F (540°C)

ASME Class Rating:

150, 300

Pressure Rating:

275-740 psi (1890-5100 kPa); 150 psi (1030 kPa) option 36” (900m) and larger.

ANSI B16.104 Shutoff Class:

Dual PTFE or Reinforced PTFE & Metal Seat, Class VI; Metal seat, Class IV or V

Body Style:

Wafer

Body Material:

Carbon Steel, 316 stainless steel

Actuator Type:

Lever, handwheel, chainwheel, square nut, PowerRac® double-acting and spring- return cyinder, spring-return diaphragm, Compak double-acting and spring-return cylinder
