Masoneilan 36005 Series

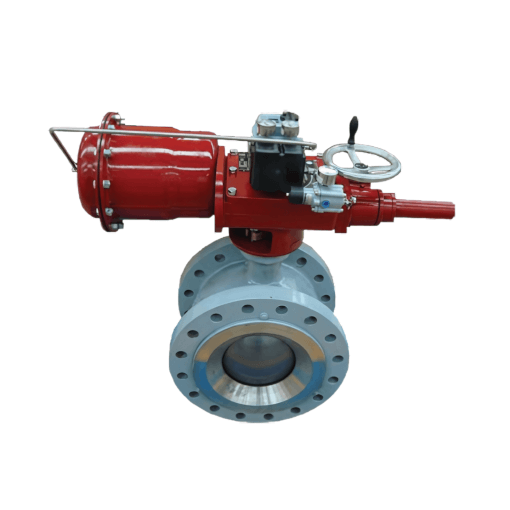

V-Max™ Control Ball Valve

These high-capacity V-ported control ball valves offer automatic throttling capability with flexible shutoff options, simplified maintenance needs, and enhanced operational reliability. The V-Max* rotary control valve offers high-capacity, heavy-duty automatic throttling capability.

Simplefied Alignment

The valve’s integrally cast raised face flanges (in compliance with ASME 150 or 300 Class standards) eliminate the need for long tie rods, significantly simplifying the alignment process.

Installation flexibility

To meet a variety of application needs, the valve is available with two different face-to-face dimensions: standard construction complies with ISA S75.04 and IEC 534-3-2 standards and a short pattern complies with the ANSI B16.

Enhanced flow capacities

A straight-through flow pattern provides exceptional capacities, while the patented dual-characterized V-port ball combines an equal percentage flow characteristic with highcapacities and greater than 500:1 rangeability.

Excellent leakage control

A standard EF(emission free) seal packing system provides long-term, zero leakage† shaft sealing performance.

Technical Specifications

Sizes

1" through 12" (25 through 300 mm)

Ratings and Connections

Flanged: ANSI 150 – 300

Body Materials

Carbon steel Stainless steel

Actuator

Model 33 spring diaphragm

Model 31/32 spring diaphragm

Trim

Dual characterized V-Ported segmented ball

Inherent Characteristics

Equal percentage

Downloads

Masoneilan has made various downloads available for the Masoneilan 36005 Series, including the specification sheet and the information sheet. These can be downloaded via the Masoneilan website.
