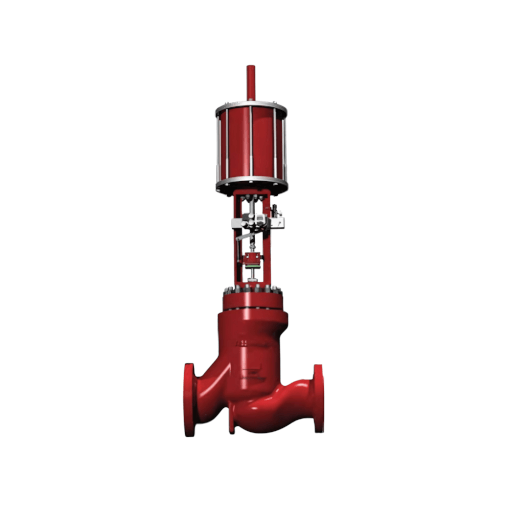

49000 Series V-LOG valve has an enlarged body gallery and up to 36 stages of pressure reduction via stacked disk trim. It handles severe high-pressure drop applications with gas expansion, noise, and cavitation control. The cast globe body is lighter and smaller than forged bodies, reducing installation costs, and V-LOG trim suits compressible and incompressible fluids.
can be configured for use with either compressible or incompressible fluids under severe service conditions making the 49000 Series valve a superior choice for liquid and gas applications including:
Sizes4” through 36” (100 through 900 mm) |
Ratings & Connectionsflanged: ANSI 150-2500, UNI-DIN 10 - 400; welded: BW |
Body Materialscarbon steel; stainless steel; chrome-moly |
Actuatorsmodel 37/38 spring-opposed diaphragm; model 87/88 multi-spring-opposed diaphragm; cylinder |
Trimsingle or double stage Lo-dB and V-LOG energy management trim; low noise flow-to-open designs or anti-cavitation flow-to-close |
Inherent Characteristicslinear or equal percentage |
Masoneilan has made various downloads available for the Masoneilan 49000 Series, including the specification sheet and the information sheet. These can be downloaded via the Masoneilan website.
