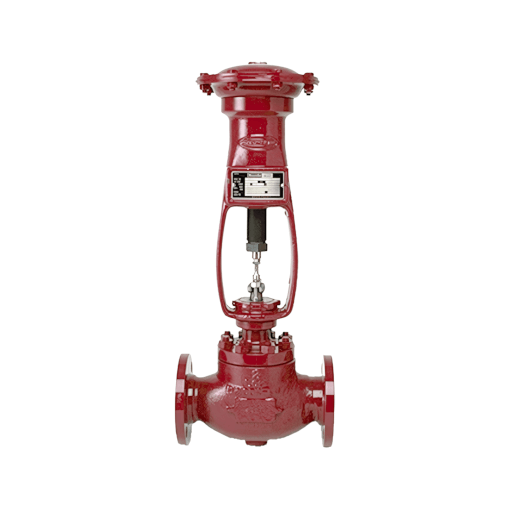

Masoneilan 535H-536H

Pressure Regulator for Reducing, Back Pressure and Differential Service

Masoneilan Model 535H / 536H pressure regulators provide accurate reduced pressures for air, liquid, and steam in sizes ¾" to 2". They handle small-to-moderate flows requiring IEC 60534-4/ANSI/FCI 70.2 Class IV or VI shut-off. For high temperatures, the actuator must be mounted below the regulator centerline with a condensate barrier to protect the diaphragm.

Technical Specifications

Function

Pressure Reducing 535H
Differential Pressure Reducing 535H-50
Back Pressure 536H
Differential Back Pressure 536H-50

Trim

Plug Type : Disc

Seat Ring : Threaded or Quick Change

Guide : Heavy Top Guided

Capacity : Full Area, Reduced Capacity in All Sizes

Characteristic : Quick Opening

Body

Type : High Capacity Globe Flow Direction: Flow-to-Open

Bonnet

Type : Bolted, Standard Bolted, Extension - Optional/p>

Body and Bonnet

Materials : Carbon Steel 316, Stainless Steel,

Chrome-Molybdenum Steel

Service

Steam, Gas, Liquids

Actuator

Type : 10900 Series

Downloads

Masoneilan has made various downloads available for the Masoneilan 535H - 536H, including the specification sheet and the information sheet. These can be downloaded via the Masoneilan website.
