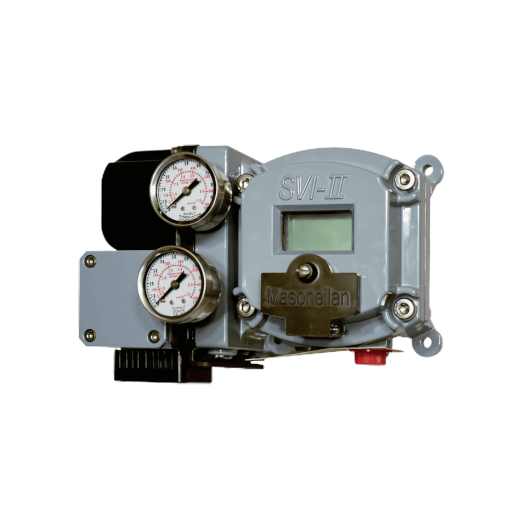

Masoneilan SVI™ II AP

Advanced Performance Digital Valve Positioner (HART)

The Baker Hughes SVI™ II AP is a 32-bit digital valve positioner with local interface, using a two-wire 4-20mA signal and HART® communication. Its universal design allows simple retrofit on Masoneilan or non-Masoneilan pneumatic actuators, whether single- or double-acting, replacing existing analog positioners easily.

Available from stock ✓

Non-Contact Position Sensing Technology

Sensing occurs through the housing with no moving parts inside, increasing durability.
Simplified mounting procedure extends ease of installation.

Easy, Simple, Accurate

LCD and pushbuttons work in certified hazardous areas.
Quick commissioning via auto stops and auto tune.
One design suits rotary or linear, remote or local applications.

Technical Specifications

Signal - Communication

HART 5 or 7 over 4-20mA

Diagnostics

Standard Diagnostics

Advanced Diagnostics

Construction / Materials

Copper-free Aluminum Housing

Operating Temperature

-50°C to +85°C

Pneumatics Action

Single or Double Acting, fail safe

Rotary and linear

Supply Pressure

Single-Acting: 20 to 100 psi max (1.4 to 6.9 bar)

Double-Acting: 20 to 150 psi max (1.4 to 10.3 bar)

Air Delivery

280 SLPM @ 30psi

Certification

ATEX, IECEx, US, Canada approvals for

Flameproof/Explosion-proof, Intrinsic Safety, Dust Ignition proof,

Non-Incendive
