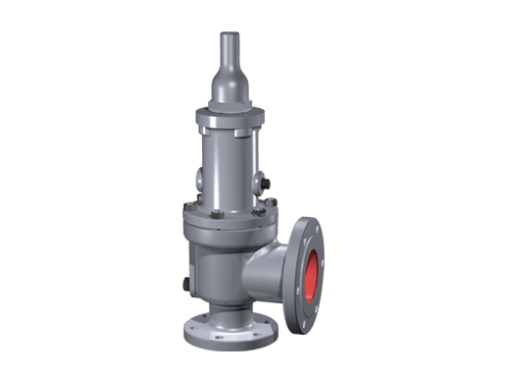

Consolidated Type 1900
Safety Relief Valve With the Eductor Tube Advantage
The highly adaptable 1900 Series Safety Relief Valve with the Eductor Tube Advantage is designed to meet a wide range of industrial applications and is certified for gas, liquid and steam media in conventional and balanced bellows designs. The 1900 Series design flexibility and parts interchangeability accommodate process changes through easy conversion to a variety of designs.
Technische Specificaties
Inlet Sizes1" through 12" |
Inlet RatingsASME Class 150 through 2500 EN 1092-1 PN 10 through PN 400 |
Outlet Sizes2" through 16" |
Outlet RatingsASME Class 150 and 300 EN 1092-1 PN 10 through PN 40 |
Orifice SizesD through W |
Set Pressure Range4 psig to 6250 psig |
Temperature Range-450°F to 1500°F |
MaterialsCast carbon steel body with stainless steel trim. Other materials available |
Standards and RegulationsASME B & PVC, Section VIII ASME B & PVC, Section I (Liquid) API 526 Pressure Equipment Directive China Manufacturing License |
