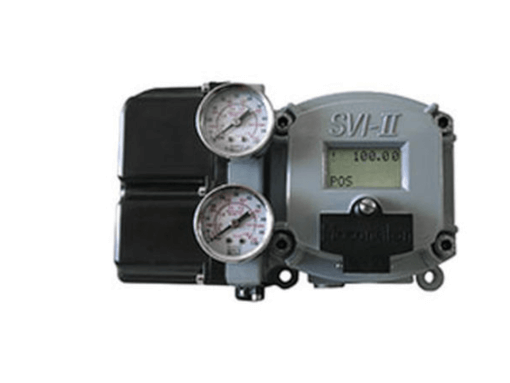

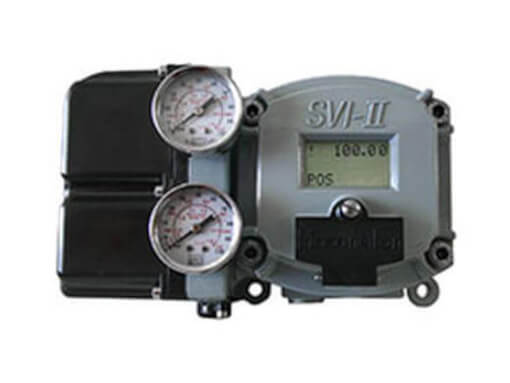

Masoneilan SVI™ II AP

Advanced Performance Digital Valve Positioner (HART)

The Baker Hughes SVI II AP (Smart Valve Interface, Advanced Performance) is a 32 bit microprocessor digital valve positioner with a local interface that controls a pneumatic actuator using a two-wire 4-20mA control signal. The instrument offers bi-directional communication using the HART® protocol. Its universal design offers ease of retrofit in place of existing analog positioners on Masoneilan or non-Masoneilan pneumatic actuators, either single-acting or double-acting.

Uit Voorraad Leverbaar

Non-Contact Position Sensing Technology

  • Sensing through the housing, no mechanical moving parts entering the main housing cavity, prolonging the life
  • Simple mounting procedure

Easy, Simple, Accurate

  • LCD and pushbuttons operable in all certified hazardous environments
  • Quick and accurate commissioning with auto stops and auto tune methods
  • One design fits many applications
    • Rotary or Linear
    • Remote or Local

Technische specificaties

Signal - Communication

HART 5 or 7 over 4-20mA

Diagnostics

Standard Diagnostics

Advanced Diagnostics

Construction / Materials

Copper-free Aluminum Housing

Operating Temperature

-50°C to +85°C

Pneumatics Action

Single or Double Acting, fail safe

Rotary and linear

Supply Pressure

Single-Acting: 20 to 100 psi max (1.4 to 6.9 bar)

Double-Acting: 20 to 150 psi max (1.4 to 10.3 bar)



Air Delivery

280 SLPM @ 30psi



Certification

ATEX, IECEx, US, Canada approvals for

Flameproof/Explosion-proof

Intrinsic Safety

Dust Ignition proof

Non-Incendive

Regional country approvals available, including:

  • Russia
  • Uzbekistan
  • Azerbaijan
  • India
  • China
  • South Africa
  • Brazil
  • Japan
  • South Korea
  • Taiwan



Downloads

Masoneilan heeft diverse downloads beschikbaar gesteld over de Masoneilan SVI™ II AP, waaronder het specificatieblad en het informatieblad. Deze zijn te downloaden via de website van Masoneilan.

Bekijk beschikbare downloads
