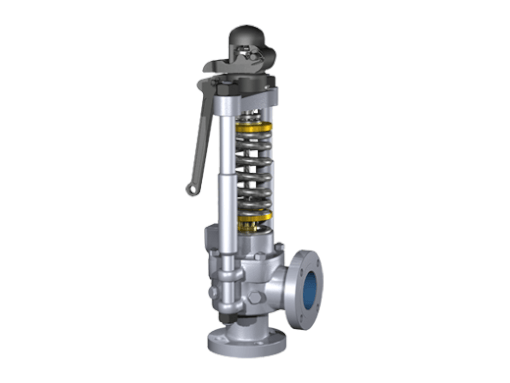

The Consolidated 1700 series Maxiflow safety valves are field-proven and are designed to provide optimum boiler overpressure protection. Increases plant efficiency by reducing steam losses via improved seat tightness and rapid opening to full lift with rapid closing as vessel pressure is reduced.
• Side rod construction provides extreme temperature compensation for thermal expansion of the body for a more consistent spring load - improved seat tightness
• Thermodisc thin flexible design for repeatable seat tightness
• Cover plate provides faster full lift by rapid venting
The Consolidated 1700 series Maxiflow safety valves are used extensively in sub-critical, drum type boilers and super-critical, once-through boilers. Inlet pressure ratings from ASME 600 class thru ASME 4500 class.
Inlet Sizes1 1/2" through 6" |
Inlet RatingsANSI Class 600 through 4500 |
Outlet Sizes3" through 10" flanged |
Outlet RatingsANSI Class 150 and 300 |
Orifice SizesEleven sizes – 1 through RR |
Set Pressure Range100 psig to 5800 psig |
Temperature RangeUp to 1200°F
|
MaterialsAlloy and carbon steel cast body with stainless steel trim
|
Standards and RegulationsASME B & PVC, Section 1 & VIII |
Consolidated heeft diverse downloads beschikbaar gesteld over de Consolidated Type 1700. Deze zijn te downloaden via de website van Consolidated.
