Benefits
The Consolidated 1811 series safety valves are designed to be cost-effective and high capacity.

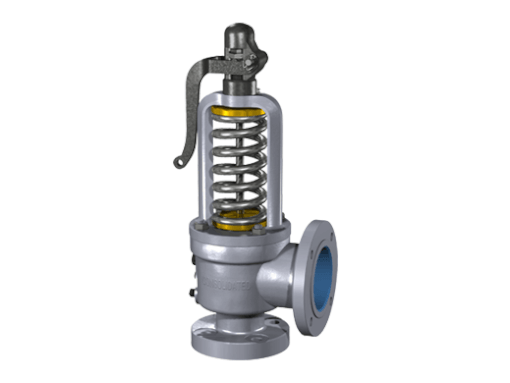

Type 1811
Safety Valve
Features
Optimized seat design for improved seat tightness and higher
capacity.
Applications
The Consolidated 1811 series safety valves are designed with inlet
pressure ratings from ASME 300 class thru ASME 600 class. The
design is approved for use by the US. Coast Guard for power
boilers and other marine applications.
Technische Specificaties
Inlet Sizes1 1/4" through 6" |
Inlet RatingsANSI Class 300 and 600 |
Outlet Sizes1 1/2" through 8" |
Outlet RatingsANSI Class 150 |
Orifice SizesTen sizes – F through Q |
Set Pressure Range15 psig to 725 psig |
Temperature RangeUp to 1000°F
|
MaterialsAlloy and carbon steel cast body with stainless steel trim
|
Standards and RegulationsASME B & PVC, Section 1 & VIII |
Downloads
Consolidated heeft diverse downloads beschikbaar gesteld over de Consolidated Type 1811. Deze zijn te downloaden via de website van Consolidated.
