Features
Thermodisc thin flexible design for repeatable seat tightness.

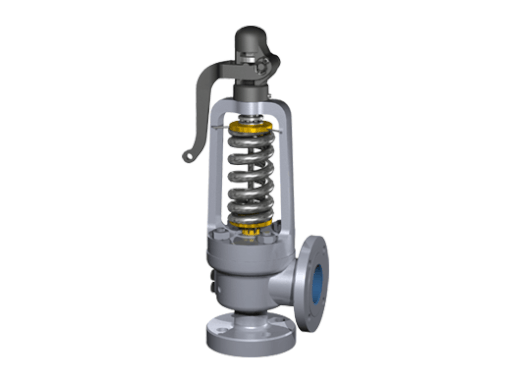

Type 2700
Safety Valve
The Consolidated Type 2700 safety valve thermodisc seat design provides seat tightness and the thermodisc design increases the amount of repeatable pops.
Applications
The Consolidated 2700 series safety valves are designed to meet the requirements of the cogeneration and waste-to-energy markets. Inlet pressure ratings from ASME 600 class thru ASME 1500 class.
Technische Specificaties
Inlet Sizes1 1/2" through 6" |
Inlet RatingsANSI Class 600, 900 and 1500 |
Outlet Sizes3" through 8" |
Outlet RatingANSI Class 150 and 300 |
Orifice SizesSeven sizes – 1 through Q
|
Set Pressure Range100 psig to 2900 psig |
Temperature RangeUp to 1050°F
|
MaterialsAlloy and carbon steel cast body with stainless steel trim
|
Standards and RegulationsASME B & PVC, Section 1 & VIII |
Downloads
Consolidated heeft diverse downloads beschikbaar gesteld over de Consolidated Type 2700. Deze zijn te downloaden via de website van Consolidated.
