Consolidated Type 2900/2900 TM

Pilot Operated Safety Relief Valve

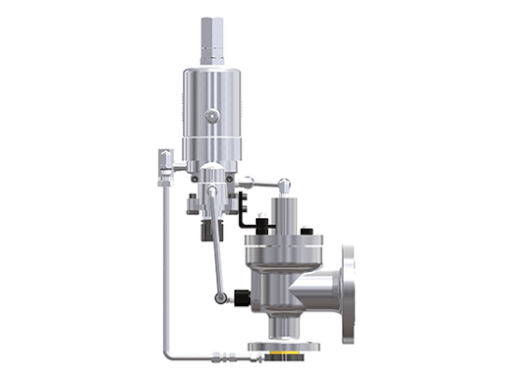

The 2900/2900 TM Series Gen II is a full-nozzle pilot-operated safety relief valve (POSRV) matching API 526 direct-spring PRV dimensions. Its patented full-nozzle integral sense design allows for easy maintenance as well as simple spring-loaded to pilot-operated PRV conversions throughout the lifecycle of the valve. The 2900 Triple Media (TM) Series is the first full nozzle POSRV engineered to perform on liquid, air/gas, and steam media and is multi-media certified to meet multiple media capacity stamping per ASME B & PVC Code Case 2787. Both valve series use the same pilot valve technology as the 3900 Series including the ‘True Zero Leakage’ modulating pilot, providing a modernized overpressure protection solution for reducing carbon footprint and emissions.

Technische Specificaties

Inlet Sizes

1" through 12"

Inlet Ratings

ASME Class 150 to 2500

EN 1092-1 PN 10 through PN 400

Outlet Sizes

2" through 16"

Outlet Ratings

ASME Class 150 to 300

EN 1092-1 PN 10 through PN 40

Orifice Sizes

D through W

Set Pressure Range

15 to 6250 psig

Temperature Range

-40°F to 505°F, above 505°F with heat exchanger

Materials

Stainless steel pilot with carbon steel main valve and stainless steel trim

Standards and Regulations

ASME B & PVC, Section XIII (UV Designator)

ASME Code Case 2787 - Triple Capacity Stamping

ASME B & PVC, Section I (Liquid)

API 526 centerline-to-face dimensions for Spring Loaded Safety Relief Valves

Pressure Equipment Directive

China Manufacturing License

Downloads

Consolidated heeft diverse downloads beschikbaar gesteld over de Consolidated Type 2900 / 2900 TM. Deze zijn te downloaden via de website van Consolidated.

Bekijk beschikbare downloads
