DeZURIKOn-Center Resilient Seated Butterfly Valves

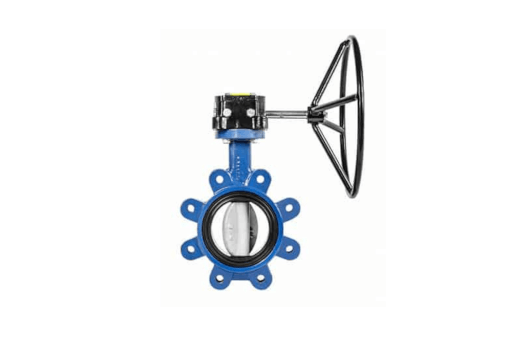

BOS-CL On-Center Resilient Seated Butterfly Valves are designed to handle a wide variety of liquids and gases. They are available in lugged 2-24″ (50-600mm) ductile Iron body design with discs of nylon coated ductile iron, 316 stainless steel or aluminum bronze. BOS-CL valves feature a one-piece body, high performance seat bonded to a solid backing ring, three heavy duty bearings, and a blow-out proof shaft.

The On-Center Seat Valve design provides a streamlined disc with high flow capacity. Designed for both on-off and throttling, the BOS-CL provides bi-directional shutoff to the full rating of the valve. BOS-CL Valves provide bubble tight shutoff and can be used on dead end service with an attached downstream flange. For high strength and corrosion resistance, three disc material choices are available: Ductile Iron Nylon Coated, 316 Stainless Steel and Aluminum Bronze.

The BOS-CL seat bonding process ensures the seat is held firmly in place and provides a long lasting, maintenance free seal. The seat is bonded to a rigid backing ring which reduces flexing and fatigue. The bonded seat also improves performance when the line maintains a vacuum, or when handling viscous liquids – circumstances that tend to dislodge seats that are not solidly retained. BOS-CL Valves have integral flange seals that eliminate the need for flange gaskets.
