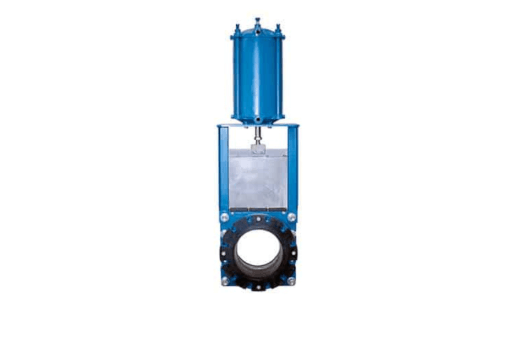

DeZURIK Slurry Knife Gate Valves

(KSL-LA) Long Body

KSL-LA Slurry Knife Gate Valves are ideally suited for applications in the mining, power, and aggregate industries.  The KSL-LA Slurry Valve features sleeves of natural rubber or other elastomers that are compressed by sleeve retainers that allow the valve to provide drip-tight shutoff. In addition, the KSL-LA valve features:

  • Bi-directional, drip tight shutoff to full pressure rating

  • Field replaceable sleeves with encapsulated supporting ring

  • Full port reduces turbulence and pressure drop across the valve

  • Sleeve compression eliminates cavity where solids can collect

  • Sleeve design eliminates the requirement of flange gaskets

  • Gate fully retracts out of the flow path in the open position

  • Full flanged design with flange drilling per ASME B16.5 Class 150, DIN and BS standards, PN10 and PN16, and SANS 1123-1000 and 1600 Australian Table D & E (AS 2129) are available

  • Body construction allows for easy repairs.

  • Sleeve design eliminates gate and stem packing.

  • Straight vertical plane superstructure allows for easy installation of accessories

  • Open / Closed position lock-outs are available

  • Optional gate coatings provide additional abrasion resistance and a non-stick (lubrication infused) surface that reduces actuating forces and extends sleeve life

  • Integral Lifting Lugs standard on sizes 12″ (300mm) and larger

  • Flushing drain plates are available

Technische Specificaties



Body Material:

Cast Ductile Iron, Carbon Steel and various Stainless Steel or higher alloy materials

Pressure Rating:

100 psi CWP (690kPa), with higher pressures available with optional gate materials

Size Range:

2-24″ (50-600mm) with larger sizes available on application

Temperature Range:

to 177°F (81°C) as standard, and up to 300°F (150°C) with high-temperature optional seat materials

Downloads

DeZURIK heeft diverse downloads beschikbaar gesteld over de DeZURIK Slurry Knife Gate Valves (KSL-LA) Long Body. Deze zijn te downloaden via de website van DeZURIK.

Bekijk beschikbare downloads
