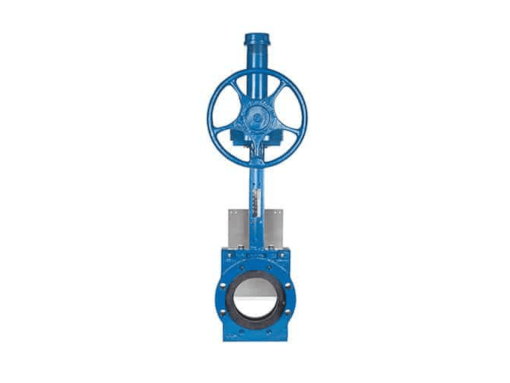

DeZURIK Slurry Knife Gate Valves

(KSL-SD) Short Body

DeZURIK’s KSL-SD Slurry Knife Gate Valves are designed for on-off (isolation) service for applications consisting of abrasive, high solids content, wet or dry media. KSL-SD Slurry Knife Gate Valves are ideally suited for applications in the mining, power, and aggregate industries. The KSL-SD valve features a short body design with narrow face-to-face per MSS SP-81. Features include:

  • Bi-directional, drip tight shutoff to full pressure rating

  • Field replaceable sleeves with encapsulated supporting ring

  • Valve design allows for easy repairs

  • Full port reduces turbulence and pressure drop across the valve

  • Sleeve compression eliminates cavity where solids can collect

  • Sleeve design eliminates gate and stem packing

  • Sleeve design eliminates the requirement of flange gaskets

  • Straight vertical plane superstructure allows for easy installation of accessories

  • Gate fully retracts out of the flow path in the open position

  • Open / Closed position lock-outs are available

  • Optional gate coatings provide additional abrasion resistance and a non-stick (lubrication infused) surface that reduces actuating forces and extends sleeve life

  • Integral Lifting Lugs standard on sizes 4″ (100mm) and larger

  • Flushing drain plates are available

Technische Specificaties



Size Range:


2-24″ (50-600mm) with larger sizes available on application

Pressure Rating:


Standard pressure rating on 2-16″ valves is 150 psi CWP (1030kPa) and 18-24″ is 100 psi CWP (690 kPa), with higher pressures available with optional gate materials.

Body Materials:


Cast body is available in Ductile Iron, Carbon Steel and various Stainless Steel or higher alloy materials.

End Connections:

Full flanged design with flange drilling per ASME B16.5 Class 150, DIN 10 and DIN 16; ISO 7005-1/PN10 and 7005-2/PN16; BS 4504/PN10 and BS 4504/PN16; AS 2129 Tables D and E; and SANS 1123-1000 and SANS 1123-1600

Temperature Ratings:

to 177°F (81°C) as standard, and up to 300°F (150°C) with high temperature optional seat materials.
