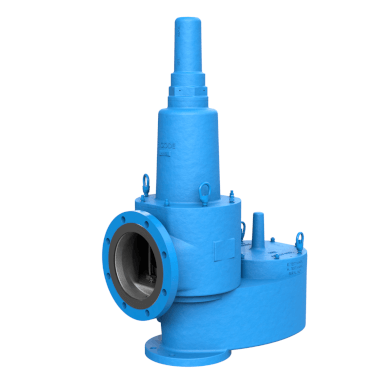

MODEL 12F-TSW
Spring Loaded Pressure / Vacuum Relief Valve – Pipe Away
The Groth Models 12F-TSW PVRV spring loaded design was created to exceed industry needs. Extensive research and development have produced a product that achieves both superior sealing performance and industry leading flow rates, while also allowing customers to reach required flow with a potentially smaller sized valve. The pressure/vacuum relief valve is designed to protect your tank from damage created by overpressure or excessive vacuum. Costly product evaporative losses due to normal tank “breathing” are greatly reduced. The Models 12E-TSW & 12F-TSW are superior sealing valves developed to minimize fugitive emissions while providing increased protection and safety to tank equipment and on-site personnel.
Modular Construction
Cushioned air seating
Superior performing fluoropolymer diaphragms
Self draining housing body and drip rings
Peripheral Guiding and center stabilizing system for alignment
PED and ATEX Certified
Technische Specificaties
Sizes2” (DN 50) through 12” (DN 300) |
Pressure Settings1 psig to 15 psig |
Vacuum Settings0.464 osig (2 mbarg) to 24 osig |
MaterialAluminum, Carbon Steel, Stainless Steel, special materials available upon request |
Downloads
GROTH heeft diverse downloads beschikbaar gesteld over de GROTH MODEL 12E-TSW. Deze zijn te downloaden via de website van GROTH.
