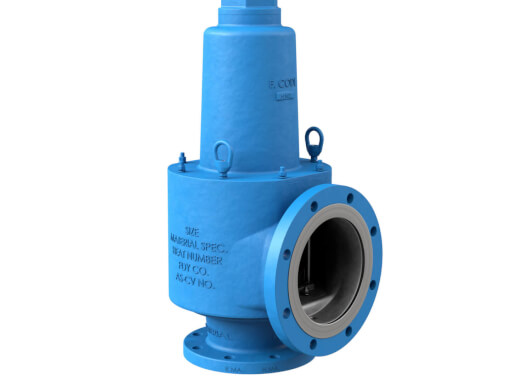

MODEL 12F-TS0
Spring Loaded Pressure Relief Valve
The Groth Model 12F-TS0 PVRV spring loaded design safeguards tanks
from damage created by overpressure. Costly product evaporation losses due to normal
tank “breathing” are greatly reduced. Because the 12 Series products retain toxic vapors,
atmospheric contamination is minimized which helps to provide increased fire protection
and safety.
Cushioned air seating
Superior performing fluoropolymer diaphragms
Self draining housing body and drip rings
Peripheral Guiding and center stabilizing system for alignment
PED and ATEX Certified
Technische Specificaties
Sizes2” (DN 50) through 12” (DN 300) |
Pressure Settings1 psig to 15 psig |
MaterialAluminum, Carbon Steel, Stainless Steel, special materials available upon request |
Downloads
GROTH heeft diverse downloads beschikbaar gesteld over de GROTH MODEL 12F-TS0. Deze zijn te downloaden via de website van GROTH.
