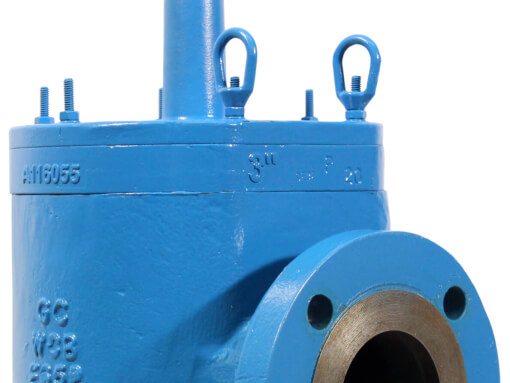

MODEL 13S-T0W

Weight Loaded Vacuum Relief Valve

The Groth Model 13S-T0W-0 is used when vacuum relief is the only requirement. The
13S-T0W-0 is side mounted on the tank body or piped in. Intake relief necessary under
working conditions is achieved by a weight loaded pallet. This feature reduces the possibility
of tank damage due to an excessive vacuum condition. Valve size must be selected to
perform required vacuum relief under operating and thermal conditions.

This valve is designed to utilize 10% overpressure technology

Product leakage and fugitive emissions are reduced via ultra-tight sealing

Higher flow capacity to protect from excessive vacuum build up

Peripheral and central seat guides ensure reliable, repeatable performance

Designed for easy maintenance, thus reducing downtime and operational cost

Technische Specificaties

Size

2” (50mm) through 12”(300mm)

Body Materials

Aluminum, Carbon Steel, Stainless Steel

Pallet Materials

Aluminum (low setting only), Stainless Steel

Diaphragm Materials

Buna-N, Blue FKM or FEP

Weight Materials

Zinc-Plated Carbon Steel, Stainless Steel

Bolting Class

150# ASME, PN10, PN16, JIS drilling classes available

Available Vacuum Settings

.86 inWC (2.15 mbarg) to 41.5 inWC (103 mbarg)

Superior tightness, meeting API-2000 leak requirements

PED and ATEX Certified
