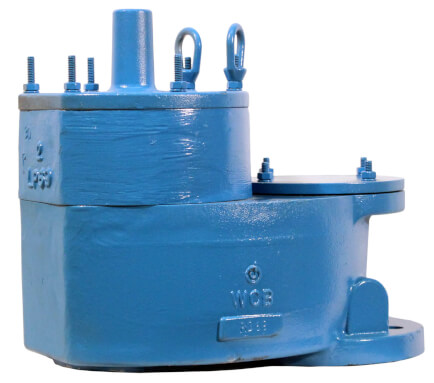

MODEL 13T-T0W

Weight Loaded Vacuum Relief Valve

The Groth Model 13T-T0W-0 weight loaded vacuum relief valve is designed to be
used in applications where additional vacuum relief is necessary. Intake relief necessary
under working conditions is achieved by a weight loaded pallet. The 13T-T0W-0
helps to provide increased fire protection and safety. Valve size must be selected to
perform required vacuum relief under operating and thermal conditions.

Product leakage and fugitive emissions are reduced via ultra-tight sealing

Higher flow capacity to protect from excessive vacuum build up

Peripheral and central seat guides ensure reliable, repeatable performance

Designed for easy maintenance, thus reducing downtime and operational cost

Technische Specificaties

Size

2” (50mm) through 12” (300mm)

Body Material

Aluminum, Carbon Steel, Stainless Steel

Pallet Material

Aluminum (low setting only), Stainless Steel

Diaphragm Materials

Buna-N, Blue FKM or FEP

Weight Material

Zinc-Plated Carbon Steel, Stainless Stee

Bolting Class

150# ASME, PN10, PN16, JIS drilling classes available

Vacuum Settings

.80 inWC (2 mbarg) to 41.5 inWC (103 mbarg)

Superior tightness, meeting API-2000 leak requirements

PED and ATEX Certified
