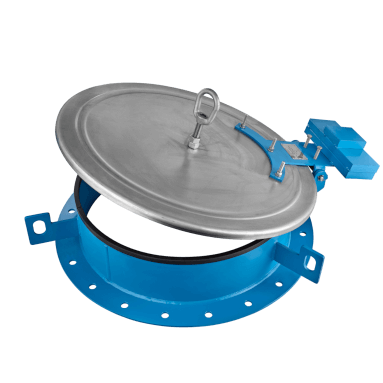

MODEL 2400A
Emergency Pressure Relief Valve, Weight-Loaded; Hinged
The Groth Model 2400A Emergency Pressure Relief Valve is designed to provide emergency relief capacity beyond that furnished by the normal operating pressure relief valve on the tank. The valve helps protects the tank against rupture or internal pressures caused by fire exposure and other emergency events. Model 2400A is designed to be self-closing, while Groth’s special fluoropolymer “cushioned air” pallet and peripheral guiding insures proper alignment and integrity of seating. The valve can be offered in corrosion resistant materials throughout.
Uit voorraad leverbaar
A wide stainless steel seat and air-cushion seal keeps leakage low long after the valve is put in service
A hinged design including a lift stop ensuring positive re-seating for reliable performance
Easy access manway combined with emergency relief
Technische Specificaties
Sizes16” – 24” (DN 400 – 600) |
Pressure Setting2.60 – 13.9 inWC (6.46 mbarg to 34.5 mbarg) |
Vacuum Settings0.87 – 6.93 inWC (2.15 mbarg to 17.2 mbarg) |
MaterialsCarbon Steel, Stainless Steel, special materials upon request |
Certified to the ATEX 2014/34/EU Directive |
Downloads
GROTH heeft diverse downloads beschikbaar gesteld over de GROTH MODEL 2400A. Deze zijn te downloaden via de website van GROTH.
