Masoneilan heeft diverse downloads beschikbaar gesteld over de Masoneilan 78400 / 18400 Series LincolnLog™ Anti Cavitation Valve. Deze zijn te downloaden via de website van Masoneilan.

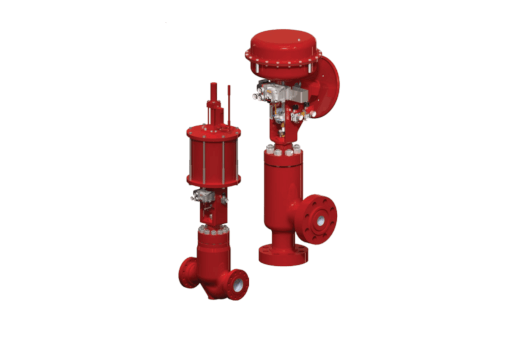

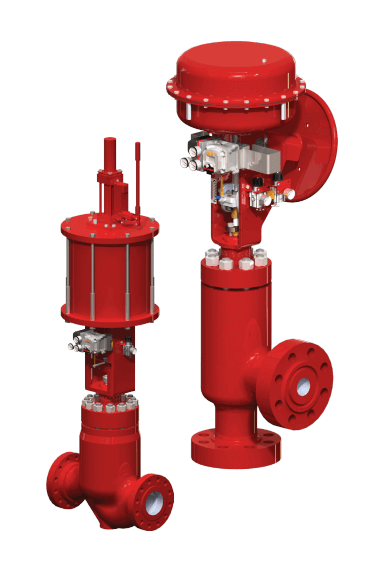

Axial Flow LincolnLog design utilizes a tortuous path to distribute pressure drop along the axis of the plug. The axial stages throttle in unison as the plug strokes, maintaining staging ratios at all lift points. Velocity and pressure drop are controlled, thus eliminating cavitation and the resulting trim damage. This valve is highly effective in pump recirculation and high pressure liquid letdown applications, including those found in Hydrotreater processes.
Size1” through 12” (25 through 300 mm) |
Ratings & Connectionsflanged: ANSI 600 - 2500 UNI-DIN 100 - 400; welded: BW or SW |
Pressure RatingAPI 6A 10K or 15K in sizes 1" through 6" |
Body Materialscarbon steel; stainless steel; chrome-moly Options include: F6NM Martensitic Stainless Steel, F51 Duplex Stainless Steel, F55 Duplex Stainless Steel and Nickel-Alloy Inconel 718 |
Actuatorsmodel 51/52/53 pneumatic piston; model 87/88 multi-spring-opposed diaphragm; cylinder |
Trimaxial flow technology; multi-stage, cage-guided, anti-cavitation trim; Class VI available on request |
Inherent Characteristicslinear |
