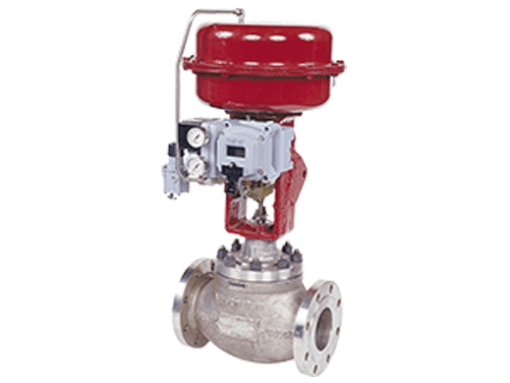

Masoneilan 21000 Series

Single Port Valve

Baker Hughes offers the Masoneilan 21000 Series heavy top-guided globe valve for a wide range of automated process control applications. The 21000 Series product line features a single-ported design configuration, which permits numerous trim, actuation, and instrumentation solutions including:

Versatile

Lo-dB* Noise Attenuation
Anti-Cavitation
Reduced Capacity & Low Flow Trim
Cryogenic Configuration
Tight Shutoff
Environmental Packing
Advanced Digital Positioning & Control

Reliable

Rugged top-guiding of the plug promotes maximum valve stability under adverse conditions. The inherent ruggedness of the 21000 Series is field-proven, with thousands of units installed in process control plants around the world operating successfully with various fluids under mild and extreme conditions.

High Performance

The combination of trim designs, actuator stability, shutoff capabilities, and superior valve positioning offers optimum control performance. The 21000 Series is also available in various materials, pressure ratings, and end connections offering a complete high-performance valve platform.

Technische Specificaties

Sizes

3/4” through 8” (20 through 200 mm)

Ratings & Connections

Flanged: ANSI 150 – 2500, UNI-DIN 10 - 400

Welded: BW or SW

Screwed: NPT 3/4” through 2” (20 through 50 mm)

Body Materials

carbon steel; stainless steel; chrome-moly

Actuators

model 87/88 multi-spring diaphragm; cylinder

Trim

single seat plug top guided; Lo-dB and anti-cavitation trims, single or double stage are available

Inherent Characteristics

Linear or equal percentage

Downloads

Masoneilan heeft diverse downloads beschikbaar gesteld over de Masoneilan 21000 Series Single Port Valve. Deze zijn te downloaden via de website van Masoneilan.

Bekijk beschikbare downloads
