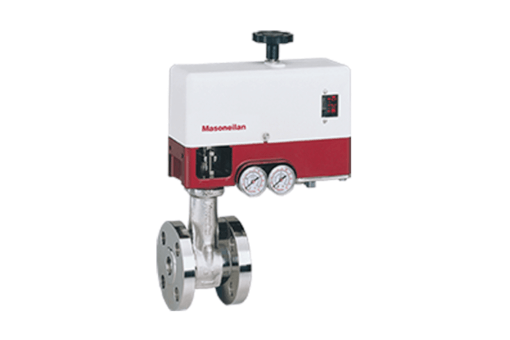

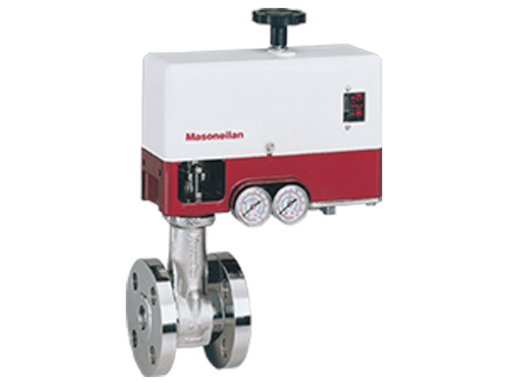

Masoneilan 28000 Series

Varipak™ Valve

Designed specifically for low flow applications, the Masoneilan Varipak Control Valves provides excellent throttling control performance with a wide range of options and capabilities. Design optimization has also resulted in an extremely integrated and compact assembly.

Key features and benefits of the VariPak control valves include:

Key features and benefits of the VariPak control valves include:

Heavy Top-Guiding Rugged

Application Flexibility

Adjustable CV

Compact Assembly

Anti-Cavitation Trim

Design flexibility

Technische Specificaties

Sizes

1” (25 mm) standard 1/2” through 3/4” (15 through 20 mm) available on request

Ratings & Connections

Flanged: ANSI 150 - 1500

Flangeless for mounting between flanges: ANSI 150 – 2500, UNI-DIN 10 - 400

Screwed: NPT 1/2” through 1” (15 through 25 mm)

Body Materials

stainless steel; monel; hastelloy C; alloy 20

Actuators

integral spring diaphragm

Trim

full stellite needle plug; multistep anti-cavitation trim available

Inherent Characteristics

Linear

Downloads

Masoneilan heeft diverse downloads beschikbaar gesteld over de Masoneilan 28000 Series Varipak™ Valve. Deze zijn te downloaden via de website van Masoneilan.

Bekijk beschikbare downloads
