Simplefied Alignment
The valve’s integrally cast raised face flanges (in compliance with ASME 150 or 300 Class standards) eliminate the need for long tie rods, significantly simplifying the alignment process.
These high-capacity V-ported control ball valves offer automatic throttling capability with flexible shutoff options, simplified maintenance needs, and enhanced operational reliability.

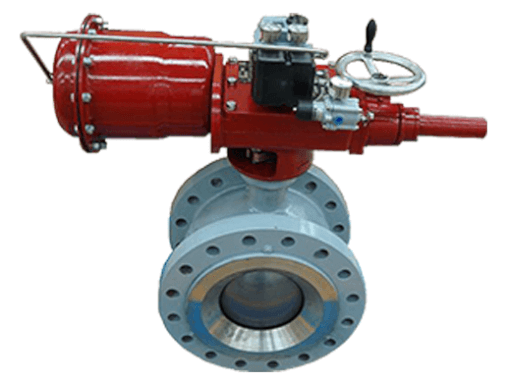

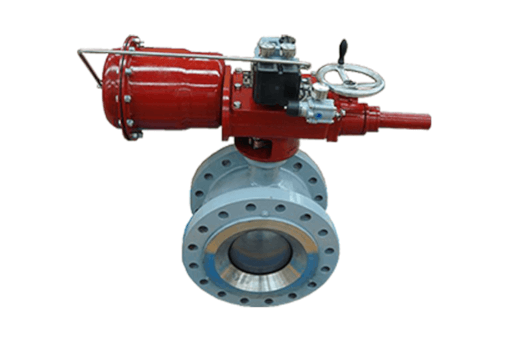

The V-Max* rotary control valve offers high-capacity, heavy-duty automatic throttling capability.The valve’s advanced design features offer substantial benefits, including:
The valve’s integrally cast raised face flanges (in compliance with ASME 150 or 300 Class standards) eliminate the need for long tie rods, significantly simplifying the alignment process.
To meet a variety of application needs, the valve is available with two different face-to-face dimensions: standard construction complies with ISA S75.04 and IEC 534-3-2 standards and a short pattern complies with the ANSI B16.
A straight-through flow pattern provides exceptional capacities, while the patented dual-characterized V-port ball combines an equal percentage flow characteristic with highcapacities and greater than 500:1 rangeability.
A standard EF(emission free) seal packing system provides long-term, zero leakage† shaft sealing performance.
Sizes1" through 12" (25 through 300 mm) |
Ratings and ConnectionsFlanged: ANSI 150 – 300 |
Body MaterialsCarbon steel Stainless steel |
ActuatorModel 33 spring diaphragm Model 31/32 spring diaphragm |
TrimDual characterized V-Ported segmented ball |
Inherent CharacteristicsEqual percentage |
Masoneilan heeft diverse downloads beschikbaar gesteld over de Masoneilan 36002 Series V-Max™. Deze zijn te downloaden via de website van Masoneilan.
